Description
FR (Flame Retardant) Insulated Flexible Cable 70°C | Hazardous substance free | Does not propagate flame & fire.
Application
Flexible single core cable with Flame Retardant PVC insulation. This cable can be used in panels, cabinets, machines and internal wirings with switchgears, relays, controllers, equipment, control units, etc.
Technical Data
- Approvals: IS 694 marked, FIA/TAC
- Cable Code: Y (FR)
- Voltage Grade: Up to and including 1100V
- Conductor: Flexible electrolytic annealed plain copper, Class 5, IS 8130
- Insulation: FR (Flame Retardant) PVC, IS 5831
- Packing: 200 mtr. in polybag or 180 mtr. coil packed in protective cartons
Properties
- Temperature Range: -15°C to +70°C
- Max. Short Circuit Temperature Rating: 160°C
- Flame Retardancy: Self-extinguishing and flame retardant according to IS 10810 P–61
- Environmental Compliance: Free from 200+ hazardous substances (REACH Compliant)

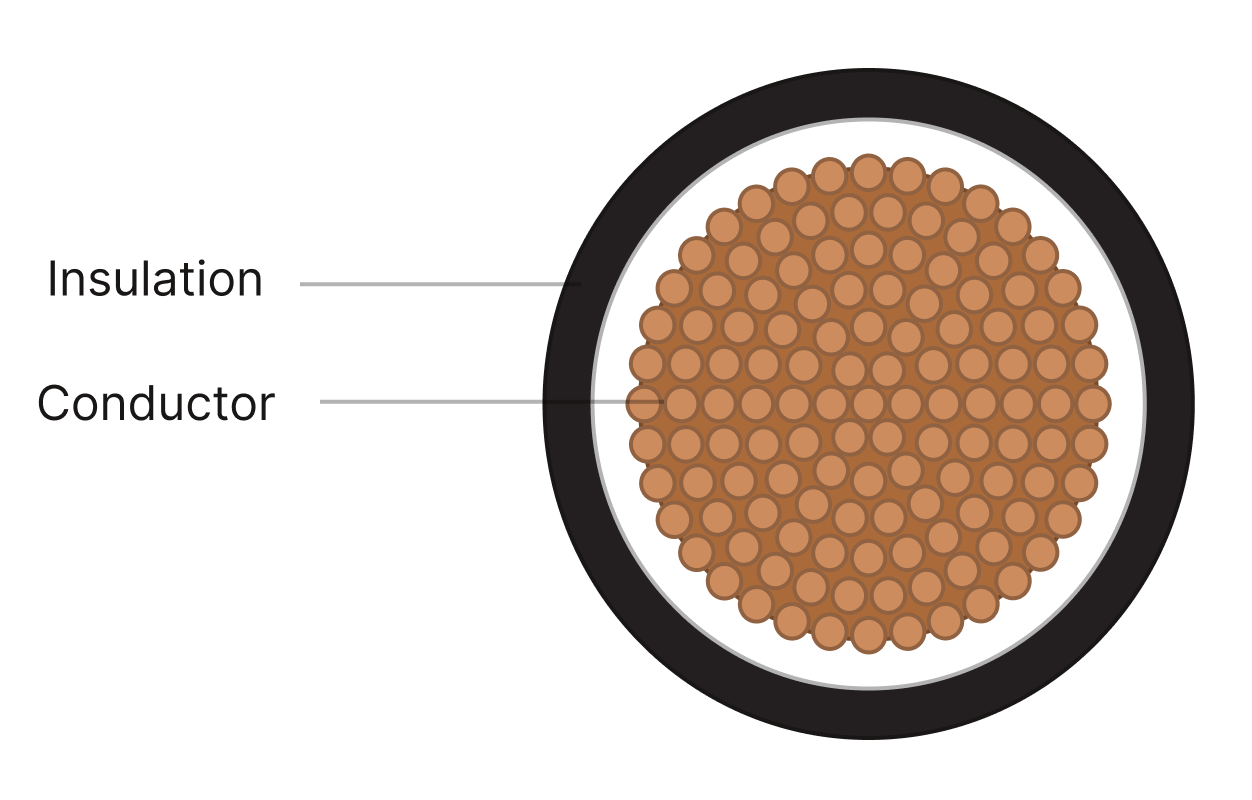

Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
01 – Green
02 – Black
03 – Red
04 – Blue
05 – Yellow
06 – Green/Yellow
07 – White
08 – Violet
09 – Brown
10 – Orange
11 – Pink
12 – Grey
| Part Number | Nominal Cross Sectional Area (sq. mm) | No. of Strands / Max. Strand Dia. (mm) | Nominal Insulation Thickness (mm) | Max. Diameter Over Insulation (mm) | Max. Current Carrying Capacity (A) |
|---|---|---|---|---|---|
| 02090101xx20 | 0.5 | 16/0.2 | 0.6 | 2.6 | 5 |
| 02090102xx20 | 0.75 | 24/0.2 | 0.6 | 2.8 | 8 |
| 02090103xx20 | 1 | 32/0.2 | 0.6 | 3.0 | 13 |
| 02090104xx20 | 1.5 | 30/0.25 | 0.7 | 3.4 | 17 |
| 02090105xx20 | 2.5 | 50/0.25 | 0.8 | 4.1 | 24 |
| 02090106xx20 | 4 | 56/0.30 | 0.8 | 4.8 | 30 |
| 02090107xx20 | 6 | 84/0.30 | 0.8 | 5.3 | 38 |
| 02090108xx20 | 10 | 140/0.30 | 1.0 | 7.0 | 52 |
| 02090109xx20 | 16 | 126/0.40 | 1.0 | 8.1 | 70 |
| 02090110xx20 | 25 | 196/0.40 | 1.2 | 10.2 | 88 |
| 02090111xx20 | 35 | 276/0.40 | 1.2 | 11.7 | 112 |
| 02090112xx20 | 50 | 396/0.40 | 1.4 | 13.9 | 146 |
| 02090113xx20 | 70 | 360/0.50 | 1.4 | 16.0 | 216 |
| 02090114xx20 | 95 | 480/0.50 | 1.6 | 18.2 | 262 |
| 02090115xx20 | 120 | 608/0.50 | 1.6 | 20.2 | 310 |
| 02090116xx20 | 150 | 750/0.50 | 1.8 | 22.5 | 355 |
| 02090117xx20 | 185 | 931/0.50 | 2.0 | 24.9 | 415 |
| 02090118xx20 | 240 | 1200/0.50 | 2.2 | 28.4 | 500 |
| 02090119xx20 | 300 | 1500/0.50 | 2.4 | 31.0 | 550 |
Test Parameters
| Test | Test Method | Values |
|---|---|---|
| Limited Oxygen Index | IS 10810 P-58 | > 29% |
| Limited Temp. Index | IS 10810 P-64 | ≥ 250°C |
