Description
Features

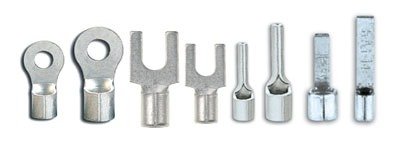

- Heavy duty ratchet type Crimping tool suitable for non-insulated terminals & Lugs from 1.5mm2 – 50 mm2 (refer to table below for selection), press to release system with precise crimping jaws for points & hexagonal type crimping.
| Ashwin Cat No. | Crimping Jaws | Length (mm) | Weight (g) | Types of Crimp |
|---|---|---|---|---|
| HT-9002 | 0.5, 1, 1.5, 2.5, 6 | 270 | 450 | Point |
| HT-9008 | 1.5, 2.5, 6, 10 | 270 | 480 | Point |
| HT-014 | 1.5, 2.5, 6, 10, 16 | 298 | 520 | Point |
| HT-025 | 6, 10, 16, 25 | 355 | 780 | Point |
| HX-10 | 1.5, 2.5, 4, 6, 10 | 280 | 460 | Hexagonal |
| HX-50 | 6, 10, 16, 25, 50 | 390 | 850 | Hexagonal |
