Description
The Switches are made in two series
- TS series : Dust and Water Proof

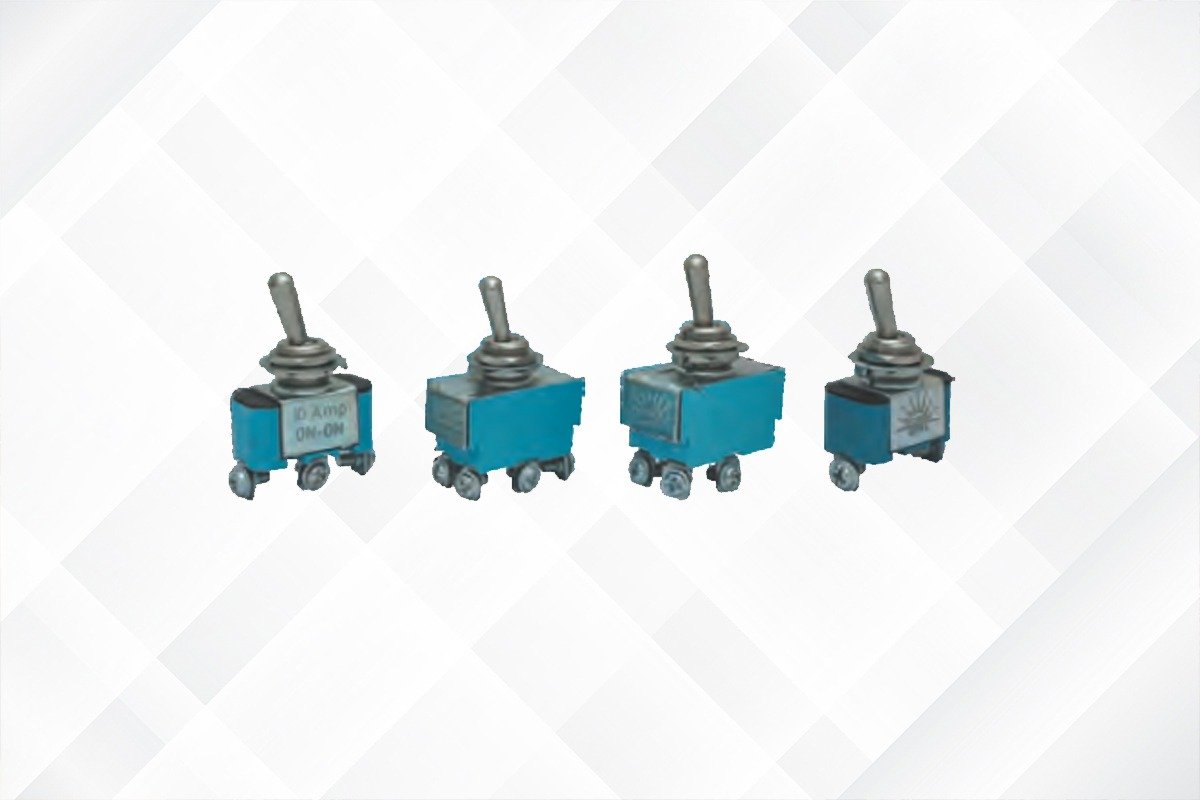

- Nano series (Economical range): They are NOT dust and waterproof.
Electrical and Mechanical Specifications
- Operations : ON-OFF, ON-ON, ON-OFF-ON, & OFF-MOM-OFF
- Housing material : Polybutylene Terephthalate (PBT)
- Rated operating voltage : 250 V. AC
- Rated and uninterrupted current : 6A,10 A,15A, & 20A
- Ambient temperature : -10°C to 55°C
- Rated operating frequency : 50 Hz/60 Hz
- Rated impulse voltage : 1.5 Kv for one minute
- Insulation resistance : >20 Mega Ω
- Contact resistance : <20 milli Ω
- Mechanical Life : 50,000 operations
- Operating force: 3.50 kg (Max)
- Housing Shade : Black and Khaki (for TS series) and Blue (for Nano series)
- Terminations : Screw ; Coated with Tri-Valent Zinc Solder ; Coated with High Quality Tin
