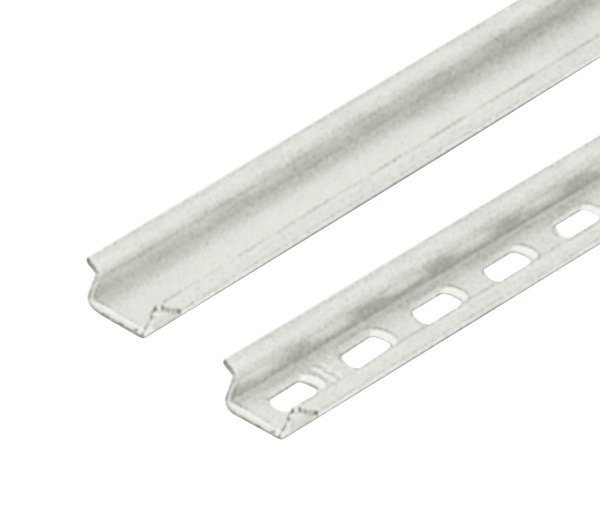

DIN Rail 15/5.5
| Images | Product Category | Size | Type | Article No. | Description | Meter / Box | Thickness (mm) | Zinc Layer Thickness (µm) |
|---|---|---|---|---|---|---|---|---|
 |
TDR3 | DIN Rail 15/5.5 | Perforated 15mm / M6 Screw Width | 11700279 | TDR3-15/5.5/PERFORATED/2M | 80 | 1 | 8~12 |
|
TDR3 | DIN Rail 15/5.5 | Perforated 15mm / M6 Screw Width | 11700280 | TDR3-15/5.5/PERFORATED/1M | 40 | 1 | 8~12 |
|
TDR3 | DIN Rail 15/5.5 | Un-Perforated | 11700277 | TDR3-15/5.5/UNPERFORATED/2M | 80 | 1 | 8~12 |
|
TDR3 | DIN Rail 15/5.5 | Un-Perforated | 11700278 | TDR3-15/5.5/UNPERFORATED/1M | 40 | 1 | 8~12 |
 |
TDR2 | DIN Rail 15/5.5 | Perforated 15mm / M6 Screw Width | 11700254 | TDR2-15/5.5/PERFORATED/2M | 80 | 1 | 6~8 |
|
TDR2 | DIN Rail 15/5.5 | Perforated 15mm / M6 Screw Width | 11700255 | TDR2-15/5.5/PERFORATED/1M | 40 | 1 | 6~8 |
|
TDR2 | DIN Rail 15/5.5 | Un-Perforated | 11700252 | TDR2-15/5.5/UNPERFORATED/2M | 80 | 1 | 6~8 |
|
TDR2 | DIN Rail 15/5.5 | Un-Perforated | 11700253 | TDR2-15/5.5/UNPERFORATED/1M | 40 | 1 | 6~8 |
|
TBLS | DIN Rail 15/5.5 | Perforated 15mm / M6 Screw Width | 11700323 | TBLS-15/5.5/PERFORATED/2M | 80 | 1 | 3~5 |
 |
TBLS | DIN Rail 15/5.5 | Perforated 15mm / M6 Screw Width | 11700324 | TBLS-15/5.5/PERFORATED/1M | 40 | 1 | 3~5 |
|
TBLS | DIN Rail 15/5.5 | Un-Perforated | 11700321 | TBLS-15/5.5/UNPERFORATED/2M | 80 | 1 | 3~5 |
|
TBLS | DIN Rail 15/5.5 | Un-Perforated | 11700322 | TBLS-15/5.5/UNPERFORATED/1M | 40 | 1 | 3~5 |
Specifications of DIN Rails
| Description | Units | TDR2 | TDR3 | TBLS | TDRC |
|---|---|---|---|---|---|
| Designed in accordance / similar to EN 60 715 | ✔ | ✔ | ✔ | ✔ | |
| Base metal – cold rolled low carbon steel according to DIN EN 10 130 | ✔ | ✔ | ✔ | ETP grade copper | |
| Electroplated coating of zinc according to DIN EN 12 329 | ✔ | ✔ | ✔ | Un-coated | |
| Passivation according to DIN EN 12329 | ✔ | ✔ | ✔ | ||
| Electroplated coating Fe//Zn8//B | ✔ | ✔ | |||
| Electroplated coating Fe//Zn12//C | ✔ | ||||
| Zinc layer thickness | µm | 6~8 | 8~12 | 3~5 | |
| Passivation film thickness | nm | 200–400 | 300–400 | ||
| Color appearance | Light iridescence (White) | Iridescence (Silver) | Copper colored | ||
| NSS neutral salt spray white rust (minimum), corrosion stability | Hours | 72 | 120 | 48 | |
| NSS neutral salt spray red rust (minimum), corrosion stability | Hours | 120 | 240 | 72 | |
| RoHS compliances | ✔ | ✔ | ✔ | ✔ | |
| CE compliances | ✔ | ✔ | |||
| May be used as grounding busbars (PE function) according to IEC 60947-7-2 | ✔ | ✔ | |||
| Standard length | Meter | 1 or 2 | 1 or 2 | 1 or 2 | 1 or 2 |
| Availability in custom cut to length | ✔ | ✔ | ✔ | ✔ |
